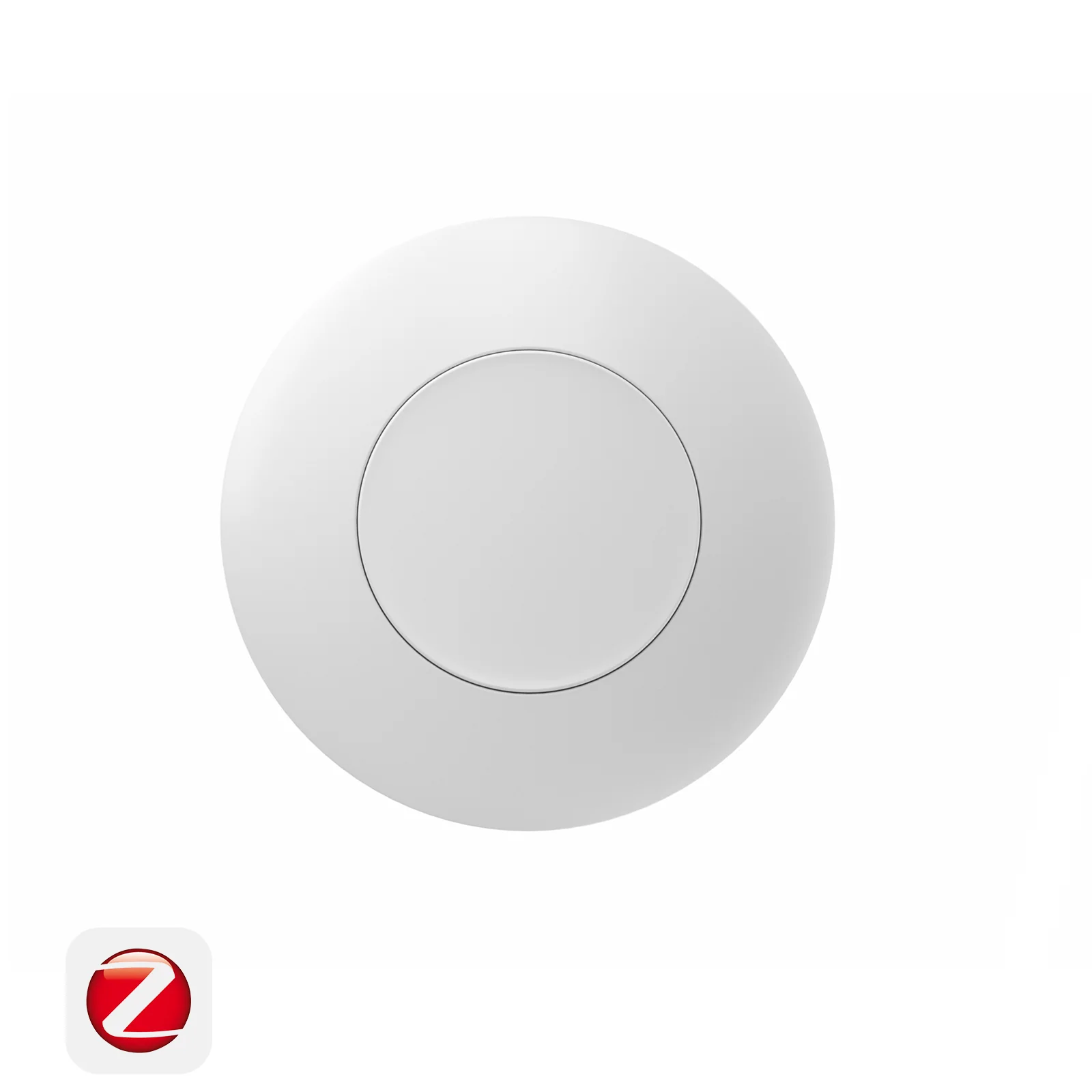

WXKG11LM-T1
ActiveMini Switch T1 Zigbee Wireless Button
Ultra-compact Zigbee 3.0 wireless smart button from Aqara. Supports single, double, long press, and triple-click gestures. Native Apple HomeKit support alongside Alexa and Google Home integration.
Common Applications
A tiny wireless button for smart home control with extensive multi-press gesture support. Triple-click gesture enables four distinct automations from one button. Native HomeKit support makes it a favorite among Apple ecosystem users. Mount with adhesive or magnetically place anywhere.
Specifications
|
Battery Life
Expected battery life under normal use. BLE buttons typically last 1-2 years on a coin cell.
|
2 years (typical)
|
|
Battery Type
The battery used. CR2032 = common coin cell, easy to replace. AAA = higher capacity. USB-C = rechargeable.
|
CR2032
|
|
Certifications
Third-party safety certifications. UL = required for US NEC installations. CE = EU compliance. CSA = Canadian standards.
|
FCC, CE, Zigbee Alliance, MFi (HomeKit)
|
|
Color
Button/actuator color. Green = start/go, Red = stop/emergency, Yellow = caution, Blue = reset (per IEC 60204-1).
|
White
|
|
Dimensions
|
41mm x 41mm x 10.2mm
|
|
Gestures
|
Single press, double press, long press, triple click
|
|
Smart Home Integrations
Compatible smart home platforms and voice assistants.
|
HomeKit, Alexa, Google Home, Home Assistant
|
|
Max Operating Temp
Highest temperature the button is rated to operate in.
|
50°C
|
|
Min Operating Temp
Lowest temperature the button is rated to operate in.
|
-10°C
|
|
Protocol
The wireless communication standard. BLE = short range, phone direct. Zigbee = mesh network, needs hub. Z-Wave = mesh, needs hub. WiFi = direct, higher power.
|
Zigbee 3.0
|
|
Wireless Range
Maximum wireless range in open air. Walls and interference reduce this significantly.
|
30m (indoor via Zigbee mesh)
|
|
Waterproof rating
|
Not waterproof (indoor use)
|
|
Weight
|
12g
|
Compatible Alternatives
These products are functionally equivalent cross-references from other manufacturers.
Installation Quick Reference
Setup: Pair with your hub or phone via Zigbee 3.0. Most smart buttons support single press, double press, and long press for three different actions.
Battery: Uses CR2032 battery. Expected life: 2 years (typical). Low battery notification via the app.
Dimensions
Troubleshooting
Not responding to input
Check wiring continuity with a multimeter. Verify the contact block is properly seated. Inspect terminals for loose connections.
Where to Buy
Quick Specs
- Battery Life
- 2 years (typical)
- Battery Type
- CR2032
- Certifications
- FCC, CE, Zigbee Alliance, MFi (HomeKit)
- Color
- White
- Dimensions
- 41mm x 41mm x 10.2mm
