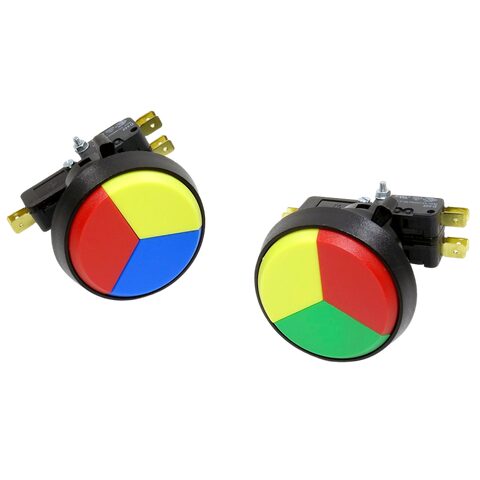

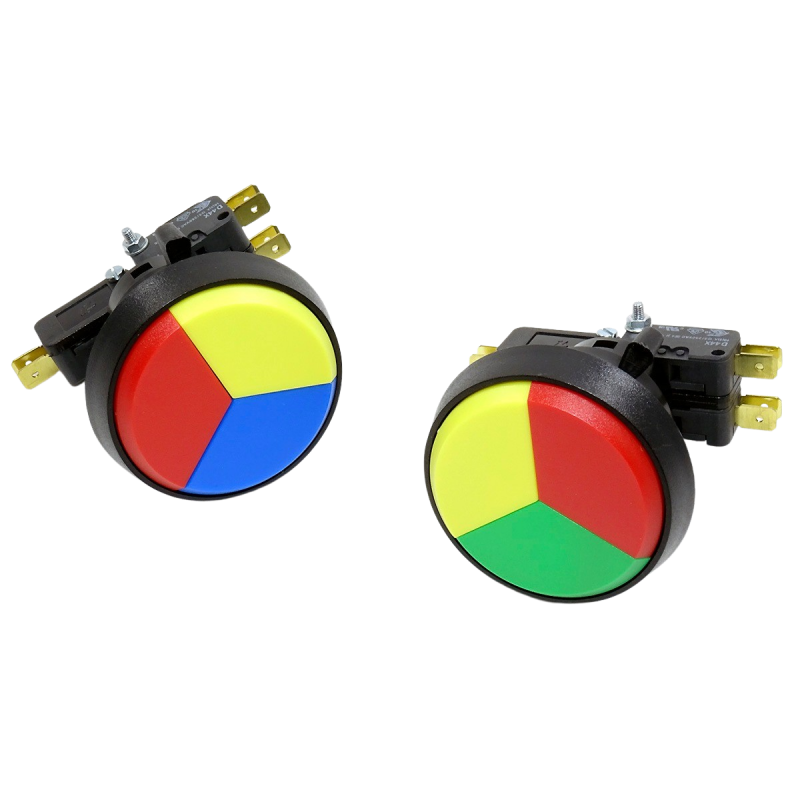

Triple push button, 3 in 1 with Cherry D44X microswitches. Model PSL-D of the Spanish brand IL.
规格参数
|
Arcade express id
|
423
|
|
Weight kg
|
0.100000
|
安装快速参考
Mounting: Snap-in buttons push into a 30mm hole from the top of the panel. Screw-in buttons thread from below and secure with a nut. Use 2-3mm acrylic, wood, or metal panel.
Wiring: Connect the microswitch terminals to your encoder or PCB. Common ground shared across all buttons. Quick-disconnect (0.110") terminals are standard on Japanese buttons.
尺寸
故障排除
Not responding to input
Check wiring continuity with a multimeter. Verify the contact block is properly seated. Inspect terminals for loose connections.
快速规格
- Arcade express id
- 423
- Weight kg
- 0.100000
