AX-678

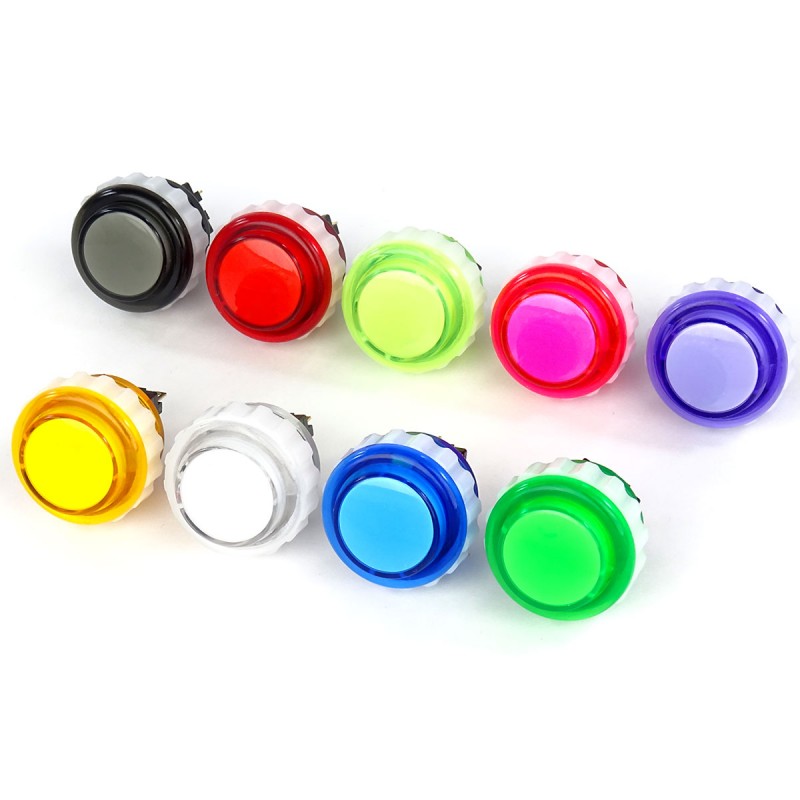

Hoạt độngSeimitsu Seimitsu PS-14-DN-K Screw In Translucent Japanese Arcade Button 24mm
Beautiful Japanese Seimitsu model PS-14-KN Translucent Japanese Arcade Push Button with 2.8mm wide terminals and thread.
Thông số kỹ thuật
|
Arcade express id
|
678
|
|
Weight kg
|
0.020000
|
Hướng Dẫn Cài Đặt Nhanh
Mounting: Snap-in buttons push into a 30mm hole from the top of the panel. Screw-in buttons thread from below and secure with a nut. Use 2-3mm acrylic, wood, or metal panel.
Wiring: Connect the microswitch terminals to your encoder or PCB. Common ground shared across all buttons. Quick-disconnect (0.110") terminals are standard on Japanese buttons.
Kích thước
Khắc phục sự cố
Not responding to input
Check wiring continuity with a multimeter. Verify the contact block is properly seated. Inspect terminals for loose connections.
Thông số kỹ thuật nhanh
- Arcade express id
- 678
- Weight kg
- 0.020000
