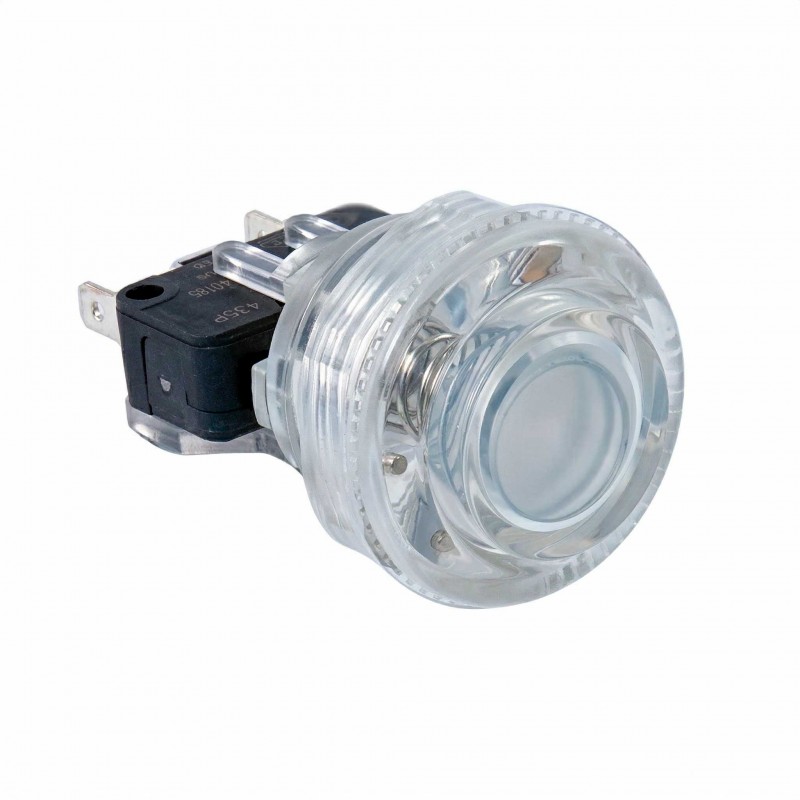

Translucent white Jalisco Super Short arcade pushbutton by Industrias Lorenzo, with Cherry D44X 4.8 mm microswitch. Designed for fightsticks and shallow metal panels. Made in Spain.
사양 목록
|
Arcade express id
|
1292
|
|
Weight kg
|
0.030000
|
설치 빠른 참조
Mounting: Snap-in buttons push into a 30mm hole from the top of the panel. Screw-in buttons thread from below and secure with a nut. Use 2-3mm acrylic, wood, or metal panel.
Wiring: Connect the microswitch terminals to your encoder or PCB. Common ground shared across all buttons. Quick-disconnect (0.110") terminals are standard on Japanese buttons.
외형 치수
문제 해결
Not responding to input
Check wiring continuity with a multimeter. Verify the contact block is properly seated. Inspect terminals for loose connections.
주요 사양
- Arcade express id
- 1292
- Weight kg
- 0.030000
