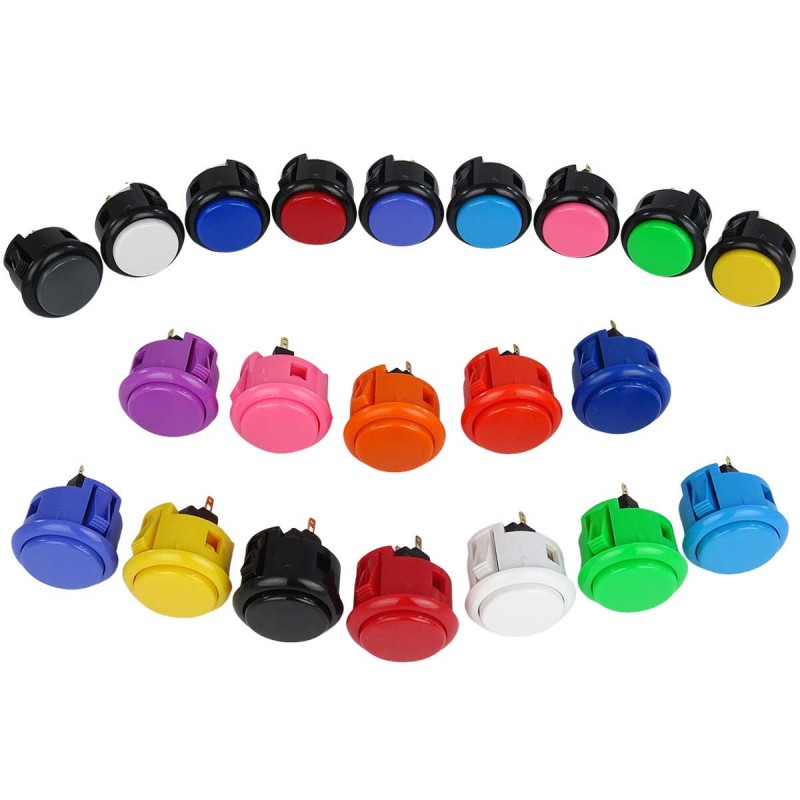

Sanwa OBSF-30 convex style buttons. Ideal for playing fighting games, installing in candy arcade cabinets and for modifying Arcade Fight Sticks.
Spetsifikatsioonid
|
Arcade express id
|
104
|
|
Weight kg
|
0.008000
|
Paigalduse kiirjuhend
Mounting: Snap-in buttons push into a 30mm hole from the top of the panel. Screw-in buttons thread from below and secure with a nut. Use 2-3mm acrylic, wood, or metal panel.
Wiring: Connect the microswitch terminals to your encoder or PCB. Common ground shared across all buttons. Quick-disconnect (0.110") terminals are standard on Japanese buttons.
Mõõtmed
Veaotsing
Not responding to input
Check wiring continuity with a multimeter. Verify the contact block is properly seated. Inspect terminals for loose connections.
Kiirspetsifikatsioonid
- Arcade express id
- 104
- Weight kg
- 0.008000
