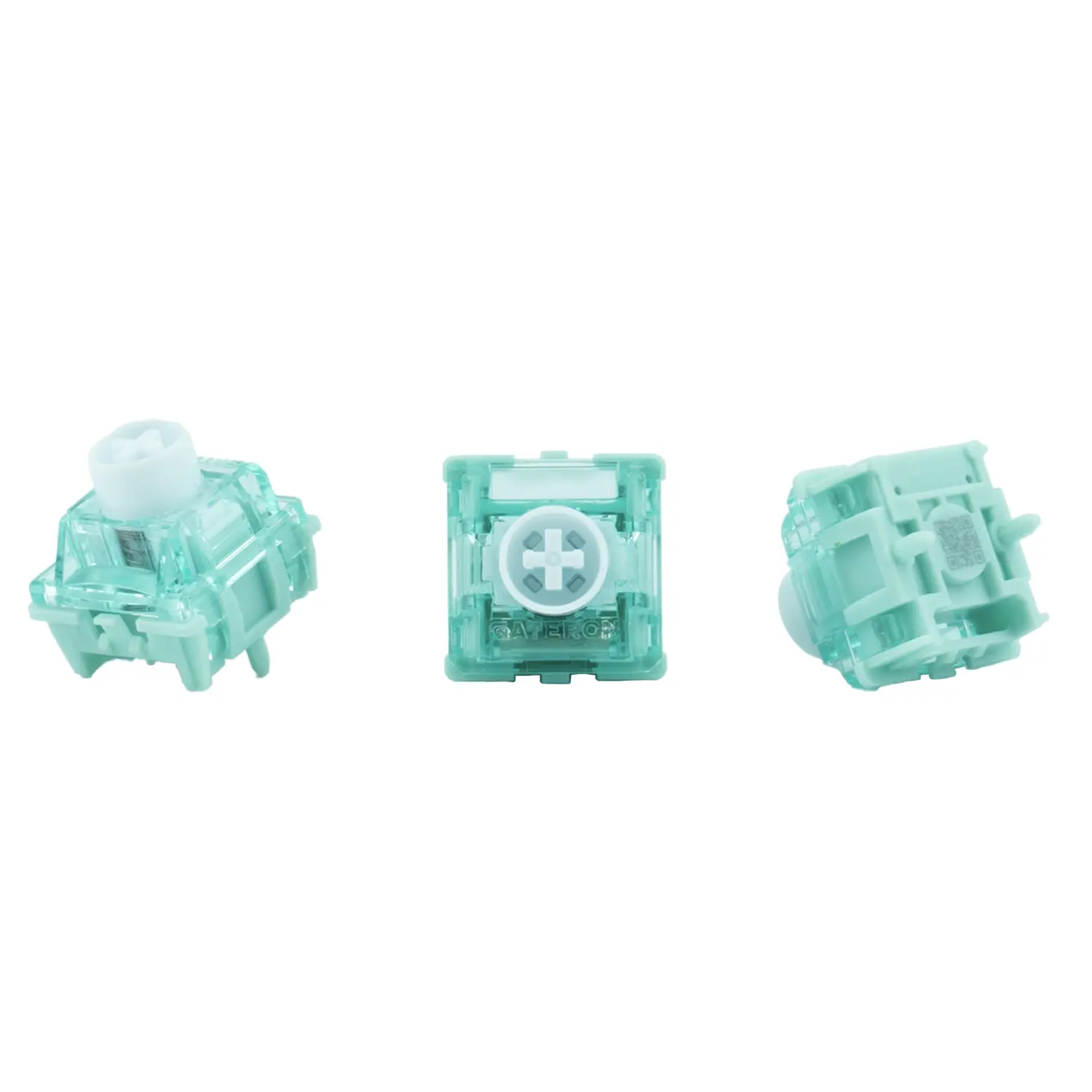

MAGNETIC JADE ULTRA DUAL-DRIVE MODULAR SWITCH SET

Specs Initial Force: 30±5gf Bottom-out Force: 40±10gf Total Travel: 3.2±0.1mm Initial Magnetic Flux: 122±8GS (PCB1.2mm) Bottom-out Magnetic Flux: 550±30GS (PCB1.2mm) Spring: 19mm Customized Spring Pre-Travel: Freely setting Pre-Lubed: Yes Typing Style: Linear 10 pcs per pack GATERON Magnetic Jade Ultra Switch Features Dual-Drive Modular Structure· Extreme Limitless Performance GATERON's Innovative Dual-Drive Modular Magnetic Switch A Revolutionary Dual-Drive Architecture--Pioneering the Split-Structure Magnetic Switch. The permanent magnet and stem are decoupled into dual segments, where the upper section governs the keystroke, and the lower section activates the trigger. Dedicated mechanics working in concert, delivering unwavering stability from the initial to the bottom-out. { "__shgImageV3Elements": { "uuid": "s-d40e0d13-a5b0-435c-8189-36fb45b78bdb" } } Double-layer Back-covered Structure Designed to recreate the classic sound and feel of mechanical switches, bringing the premium acoustics experience. { "__shgImageV3Elements": { "uuid": "s-5afcd7b1-c5df-4628-9d9e-edaf57e10bc5" } } Permanent Magnet Integrated with Acoustic Chamber Dual Back-covered Design for Enhanced Acoustics, Authentic Mechanical Switch Sound Reproduction, Superior Sound, Refined Acoustics. Featuring factory-lubricated and a built-in lubrication channel, significantly reducing friction noise for a pure, silent typing experience. { "__shgImageV3Elements": { "uuid": "s-2552b1b4-61c0-4b79-ba2a-839f10459a57" } } The Translucent Jade Aesthetic – Understated Elegance Where bright light is tempered to a gentle glow, diffusing a soft, jade-toned glow through the semi-translucent top housing. Harsh light is softened, while low light reveals a deeply textured allure. { "__shgImageV3Elements": { "uuid": "s-e1ab9c0a-d94f-4072-801b-ed234fb24796" } } The Translucent Jade Aesthetic – Understated Elegance Where bright light is tempered to a gentle glow, diffusing a soft, jade-toned glow through the semi-translucent top housing. Harsh light is softened, while low light reveals a deeply textured allure. { "__shgImageV3Elements": { "uuid": "s-83abc345-030e-456f-97ca-bf49fbc09b6c" } } { "__shgImageV3Elements": { "uuid": "s-cadcb241-7c62-45fb-9be0-15f5527e4e43" } } { "__shgImageV3Elements": { "uuid": "s-69a77157-0df6-4699-9526-e9eff1812f0c" } } Specs Initial Force: 30±5gf Bottom-out Force: 40±10gf Total Travel: 3.2±0.1mm Initial Magnetic Flux: 122±8GS (PCB1.2mm) Bottom-out Magnetic Flux: 550±30GS (PCB1.2mm) Spring: 19mm Customized Spring Pre-Travel: Freely setting Pre-Lubed: Yes Typing Style: Linear 10 pcs per pack GATERON Magnetic Jade Ultra Switch Features Dual-Drive Modular Structure· Extreme Limitless Performance GATERON's Innovative Dual-Drive Modular Magnetic Switch A Revolutionary Dual-Drive Architecture--Pioneering the Split-Structure Magnetic Switch. The permanent magnet and stem are decoupled into dual segments, where the upper section governs the keystroke, and the lower section activates the trigger. Dedicated mechanics working in concert, delivering unwavering stability from the initial to the bottom-out. { "__shgImageV3Elements": { "uuid": "s-3055019c-ffdb-4003-bcde-cf4fd26e2985" } } { "__shgImageV3Elements": { "uuid": "s-4c45cef2-d94e-4e4c-860c-c1df38ab11b6" } } Double-layer Back-covered Structure Designed to recreate the classic sound and feel of mechanical switches, bringing the premium acoustics experience. Permanent Magnet Integrated with Acoustic Chamber Dual Back-covered Design for Enhanced Acoustics, Authentic Mechanical Switch Sound Reproduction, Superior Sound, Refined Acoustics. Featuring factory-lubricated and a built-in lubrication channel, significantly reducing friction noise for a pure, silent typing experience. { "__shgImageV3Elements": { "uuid": "s-1f5b0bb6-e07c-4970-8a11-e5d6722aebb2" } } { "__shgImageV3Elements": { "uuid": "s-d14f30e4-ac88-475f-86b8-5b6102af345d" } } The Translucent Jade Aesthetic – Understated Elegance Where bright light is tempered to a gentle glow, diffusing a soft, jade-toned glow through the semi-translucent top housing. Harsh light is softened, while low light reveals a deeply textured allure. The Translucent Jade Aesthetic – Understated Elegance Where bright light is tempered to a gentle glow, diffusing a soft, jade-toned glow through the semi-translucent top housing. Harsh light is softened, while low light reveals a deeply textured allure. { "__shgImageV3Elements": { "uuid": "s-0b4183b2-4ae9-44d0-885d-9e609407a7fb" } } { "__shgImageV3Elements": { "uuid": "s-05b46bcd-96dd-4d80-b2dc-879f2518adde" } } { "__shgImageV3Elements": { "uuid": "s-cec4f7a4-8beb-4579-a307-aa1ae61d2a42" } }
